DR-L201 Conveyor belt tensile testing machine

2300.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Product Type DR-L201 Conveyor belt tensile testing machine
Weight 45 Kilograms (kg)
Capacity 20 Ton
Sensor Load cell (20 tons capacity)
Color White & Grey
Power 7 Watt (w)
Screw Size M30
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

DR-L201 Conveyor belt tensile testing machine Price And Quantity

Minimum Order Quantity 1 Unit
Price 2300.0 USD ($)/Unit

DR-L201 Conveyor belt tensile testing machine Product Specifications

Screw Size M30
Power 7 Watt (w)
Color White & Grey
Machine Speed 300 mm/m
Sensor Load cell (20 tons capacity)
Weight 45 Kilograms (kg)
Product Type DR-L201 Conveyor belt tensile testing machine
Capacity 20 Ton
Dimension (L*W*H) 3 x 1.5 x 2.5 Meter (m)
Application Industrial

DR-L201 Conveyor belt tensile testing machine Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 50 Unit Per Month
Delivery Time 10 Days
Sample Policy Contact us for information regarding our sample policy
Main Domestic Market All India

Product Description

Conveyor belt tensile testing machine Technical Parameters

Maximum Test Force: Common specifications include 5kN, 10kN, 20kN, 50kN, etc. You can select an appropriate range according to the actual usage of the conveyor belt.
Test Force Measurement Range: 2% - 100% of the maximum test force.
Test Force Measurement Accuracy: 1%.
Displacement Measurement Accuracy: 0.01mm.
Tensile Speed Range: It can be steplessly adjusted within the range of 0.01 - 500mm/min to meet different testing requirements.
Effective Tensile Space: Depending on the model of the testing machine, the effective tensile space generally ranges from 500mm to 2000mm.

Item	Parameters
Load Capacity	5-200kg
Load cell brand	China brand
Motor	90W OPG adjustable-speed motor
Drive	90W drive
Screw	Screw
Control Way	LED with built-in printer
Speed	Adjustable speed 50-300mm/min
Max.Stroke	900mm (including clamps)
Load Resolution	1/250,000
Load Accuracy	0.5%
Unit Switching	gf/kgf/N//kN/LBf/T
Dimension	(LWH) 4504001360mm
Weight	Approx. 45KG
Power	1 AC 220V

FAQs of Conveyor belt tensile testing machine:

1. How much test data can it store?

It can store a large amount of data to meet long - term testing needs.

2. Can it generate test reports?

Yes, and the report format can be customized according to requirements.

3. Is it difficult to install the test specimen?

No, it comes with suitable fixtures and is easy to install.

4. How often should the equipment be calibrated?

It is recommended to calibrate it once a year to ensure accuracy.

5. Is the response of the tensile speed adjustment fast?

Yes, it can quickly reach the set speed.

6. What are the requirements for the operating environment?

The temperature should be between 5 - 40C, the humidity 80%, and the environment should be clean.

7. Is it easy to replace the fixtures?

Yes, it is designed for quick fixture replacement.

8. Is the operating noise of the equipment loud?

No, it runs smoothly with low noise.

9. Can it be connected to a computer for operation?

Yes, it supports connection to a computer and software control.

10. Is there a limit to the width of the conveyor belt?

The fixtures are suitable for various widths, and most common widths are applicable.

Industrial Strength and Precision

Built for industrial environments, the DR-L201 conveyor belt tensile testing machine provides exceptional measurement accuracy and robust performance. Its capacity to test up to 20 tons ensures reliability for heavy-duty conveyor belts used in a variety of sectors-mining, manufacturing, and more.

Advanced Load Cell Technology

Equipped with a high-capacity load cell sensor, the DR-L201 delivers precise tensile evaluations. Coupled with a controlled machine speed of 300 mm/m, it reduces errors and allows for thorough, repeatable testing outcomes, supporting strict industrial quality requirements.

FAQ's of DR-L201 Conveyor belt tensile testing machine:

Q: How does the DR-L201 conveyor belt tensile testing machine operate?

A: The DR-L201 utilizes a load cell sensor with a 20-ton capacity to measure the force required to stretch conveyor belts. The sample is secured using the M30 screw clamp, and the machine applies controlled tension at a speed of 300 mm/m to determine tensile strength.

Q: What are the primary industrial applications for this tensile testing machine?

A: This machine is mainly used in industries requiring strong and reliable conveyor belts, such as mining, quarrying, and heavy manufacturing. It helps ensure belts meet necessary strength specifications before deployment.

Q: When is it advisable to use the DR-L201 for testing conveyor belts?

A: The DR-L201 should be used during the quality control phase, either post-production or before on-site installation, to confirm that conveyor belts meet required tensile standards.

Q: Where can the DR-L201 be installed and operated?

A: Given its compact design (3 x 1.5 x 2.5 meters) and moderate weight of 45 kg, the DR-L201 can be set up in most industrial labs or onsite workshops equipped with adequate safety and power provisions.

Q: What is the process for testing a conveyor belt with this machine?

A: To test a belt, secure the sample with the provided clamps, set the machine parameters, and initiate the test. The load cell measures the force, and the device records tensile data for review and documentation.

Q: How does using this machine benefit industrial operations?

A: By reliably measuring the tensile strength of conveyor belts, the DR-L201 helps prevent costly failures and downtime, ensuring operational safety and efficiency.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Universal Test Machine' category

5000N Metal wire tensile testing machine Price : 5500.0 USD ($)/Unit Minimum Order Quantity : 1 Application : Tensile Testing Screw Size : Ball screw 32 Power : Singlephase AC220V, 50/60 Hz Sensor : High precision load cell Dimension (L*W*H) : 760 480 1550 mm Capacity : 500 Kg Speed Range : 0.1 500mm Machine Speed : 0.1 500mm/min Product Type : Tensile Testing Machine Weight : approx. 160 kg Color : White Accuracy : 1% Power Source : Electricity Load Capacity : 5000N Test Force : 5000N max Stroke Length : 600mm Features : Microcomputer control, LCD display, overload protection Material : Steel body, powder coated Phase : Single Phase Frequency : 50/60Hz Control System : Microcomputer PLC control Operating Temperature : 10~35C Resolution : 1N Power Consumption : 0.75kW Voltage : 220V Maximum Test Force : 5000N Automatic Grade : Automatic

Send Inquiry

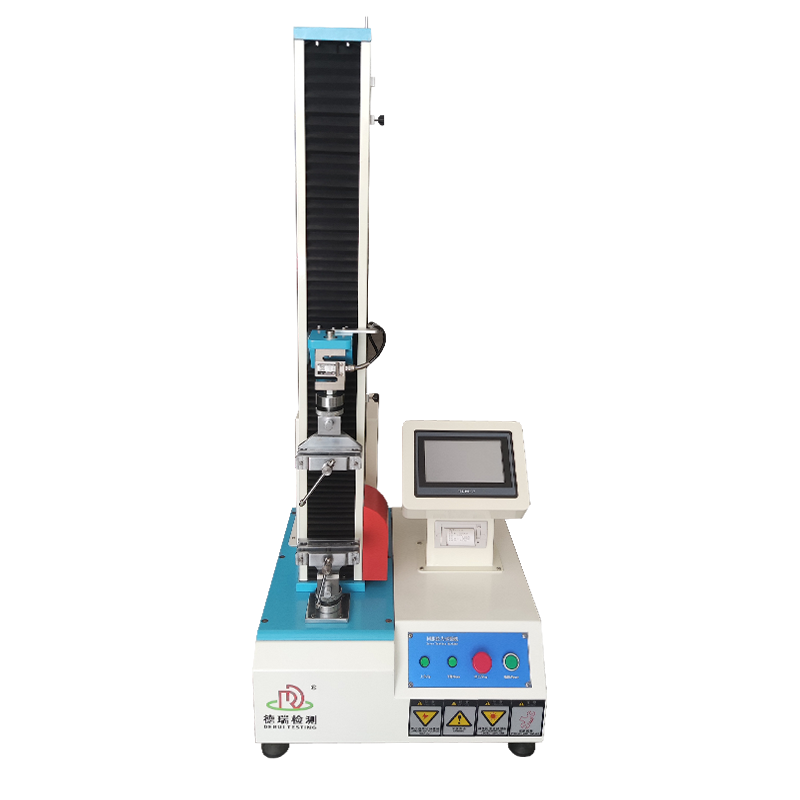

Aluminum Foil Tensile Tester with 0.001mm Resolution Displacement Sensor Real-Time Graph Price : 188005.0 INR/Unit Minimum Order Quantity : 1 Application : Aluminum foil, films, paper, plastic, and thin flexible specimens Screw Size : 16 mm Power : 220V, 50Hz, Single Phase Sensor : 0.001 mm Resolution Displacement Sensor Dimension (L*W*H) : 660 x 350 x 900 mm Capacity : 500 N/50 kgf Speed Range : 10300 mm/min (variable) Machine Speed : 0.01~500 mm/min (programmable) Product Type : Aluminum Foil Tensile Tester Weight : 50 kg (approx.) Color : Grey with white Accuracy : 0.5% of reading Power Source : Electric Load Capacity : 500 N (customizable) Test Force : Up to 500 N Stroke Length : 600 mm (customizable) Features : RealTime Graph Display, High Precision, Programmable Speed, Data Storage, USB Port, Safety Limit Switch Material : Mild Steel Phase : Single Frequency : 50 Hz Control System : Microprocessor based, Digital Touch Panel Operating Temperature : 10C to 40C Resolution : 0.001 mm (displacement) Power Consumption : 400 W Voltage : 220V Maximum Test Force : 500 N Automatic Grade : Automatic
