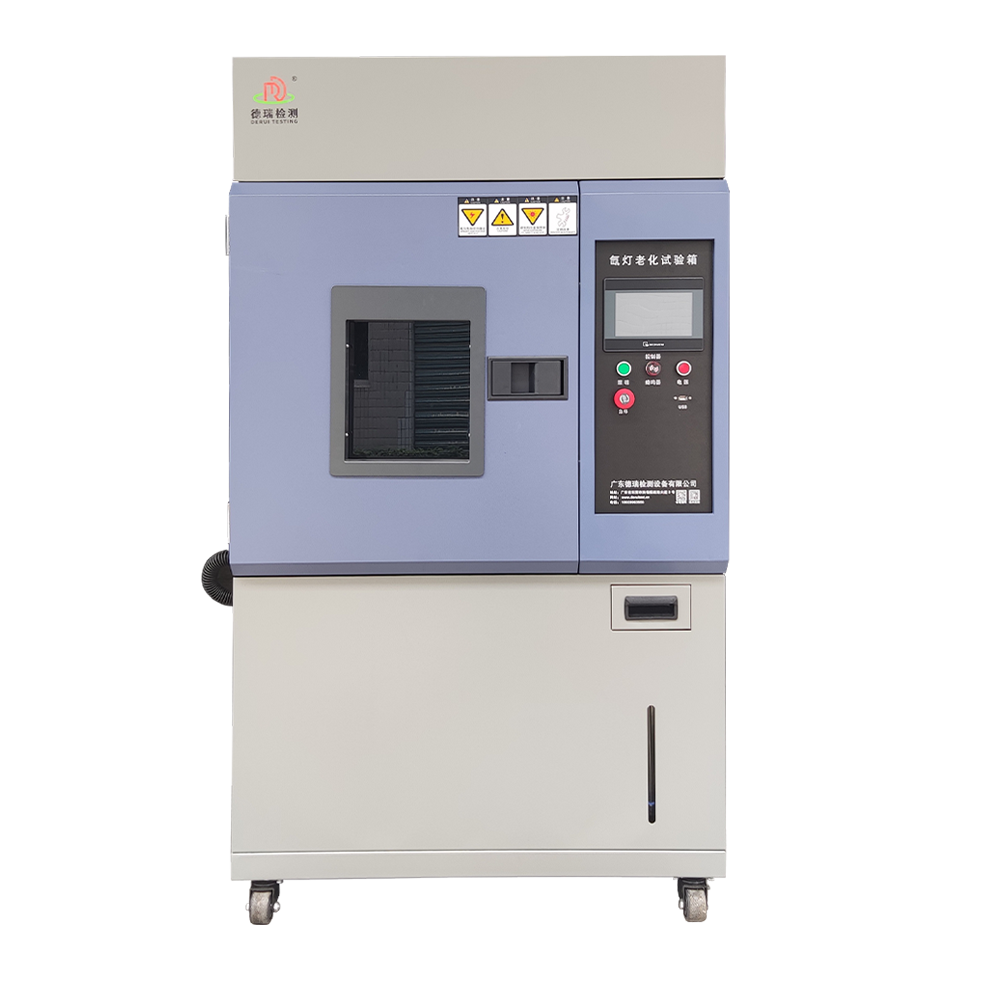

Xenon Test Chamber Suppliers in China for Packaging Material UV Resistance
578005.0 INR/Unit
Product Details:
- Frequency 50/60 Hz
- Equipment Type Xenon Test Chamber
- Test Range UV, Visible, and IR spectrum exposure
- Temperature Room temperature~80C (3C)
- Power Supply AC 220V, 50/60Hz
- Features Water-cooled or air-cooled, rapid light stability assessment, fully sealed chamber, automatic water supply, alarm system
- Number of Specimens Up to 30 specimens
- Click to view more
X
Xenon Test Chamber Suppliers in China for Packaging Material UV Resistance Price And Quantity
- 1 Unit
- 578005.0 INR/Unit
- 1440 cm2
- 340 nm or 420 nm, adjustable
- 5 rpm
- Overtemperature protection, water shortage alarm, overload protection
- 0.30-1.20 W/m2
- Stainless steel
- Full-spectrum Xenon arc lamp
- Width 950 mm × Depth 950 mm × Height 1700 mm
- GB/T 16422.2, ISO 4892-2, ASTM G155
- 1.8 kW (Xenon arc lamp)
- Programmable (0-999 min)
- Air cooling / Water cooling options
Xenon Test Chamber Suppliers in China for Packaging Material UV Resistance Product Specifications
- Fully automatic
- Max. 15070 mm (each)
- 3 seconds
- DN25
- 1700 mm
- Adjustable up to 350 mm
- 0.5C (temperature), 2% RH (humidity)
- Floor-standing
- Adjustable, 10-60 cycles/hour
- 0~99999 min/cycle
- RS232, USB
- Packaging Material UV Resistance Test
- 220V
- 400 mm
- 0.1C / 1% RH
- LCD Touchscreen
- 0.5~0.8 MPa (For air-cooling type, if required)
- Programmable Touch Screen Controller
- 30%~98% RH (Controllable)
- Customizable
- AC 220V, 50/60Hz
- Up to 30 specimens
- Approx. 320 kg
- Water-cooled or air-cooled, rapid light stability assessment, fully sealed chamber, automatic water supply, alarm system
- 50/60 Hz
- Xenon Test Chamber
- Accelerated weathering test, UV resistance testing for packaging materials
- UV, Visible, and IR spectrum exposure
- Room temperature~80C (3C)
- 1440 cm2
- 340 nm or 420 nm, adjustable
- 5 rpm
- Overtemperature protection, water shortage alarm, overload protection
- 0.30-1.20 W/m2
- Stainless steel
- Full-spectrum Xenon arc lamp
- Width 950 mm × Depth 950 mm × Height 1700 mm
- GB/T 16422.2, ISO 4892-2, ASTM G155
- 1.8 kW (Xenon arc lamp)
- Programmable (0-999 min)
- Air cooling / Water cooling options
Xenon Test Chamber Suppliers in China for Packaging Material UV Resistance Trade Information
- Cash in Advance (CID)
- 100 Unit Per Month
- 10 Days
- All India
Product Description
Introduction
Guangdong Derui Testing Equipment Co., Ltd. is a leading manufacturer and supplier of high-quality Xenon Test Chambers in China. Our products are designed to meet the rigorous demands of material testing in various industries, providing reliable solutions for simulating natural weathering conditions such as UV light, temperature, and humidity. This guide will walk you through our product advantages, industry applications, services, purchasing process, and operating procedures.
Product Advantages
- Advanced Xenon Arc Technology
- Utilizes xenon arc lamps to replicate the full spectrum of natural sunlight (UV, visible, and infrared), ensuring accurate and realistic weathering simulations.
- Precise Climate Control
- Equipped with advanced temperature and humidity control systems to simulate diverse environmental conditions, from tropical heat to temperate climates.
- Customizable Test Cycles
- Program custom test cycles to replicate specific weather patterns, such as rain, fog, or prolonged UV exposure, for precise testing requirements.
- Durable and Reliable Construction
- Built with high-quality, corrosion-resistant materials to ensure long-term performance and minimal maintenance.
- User-Friendly Interface
- Intuitive control panels and software for easy programming, real-time monitoring, and data analysis.
- Compliance with International Standards
- Designed to meet ISO, ASTM, and IEC standards, ensuring test results are recognized globally.
- Cost-Effective Solution
- Accelerates testing timelines and reduces the need for outdoor testing, lowering costs and improving efficiency.
Industry Applications
Our Xenon Test Chambers are widely used across various industries to evaluate material durability and performance under simulated weathering conditions. Some key applications include:
- Automotive Industry
- Testing the weathering resistance of paints, coatings, plastics, and rubber components for cars and trucks.
- Aerospace Industry
- Assessing the performance of exterior materials, such as composites and sealants, under extreme UV and temperature conditions.
- Electronics and Electrical Components
- Evaluating the durability of enclosures, connectors, and wiring under UV and humidity exposure.
- Construction and Building Materials
- Testing roofing materials, insulation, and exterior finishes for resistance to sunlight and moisture.
- Textile and Clothing Industry
- Assessing fabric durability and colorfastness under simulated sunlight and humidity.
- Food Packaging and Consumer Goods
- Ensuring packaging materials maintain their integrity and appearance under real-world conditions.
- Medical Devices and Pharmaceuticals
- Testing the stability of medical device components and drug packaging under accelerated aging conditions.
Our Services
At Guangdong Derui Testing Equipment Co., Ltd., we provide comprehensive support to ensure your Xenon Test Chamber meets your specific needs. Our services include:
- Consultation and Customization
- Tailored solutions to match your testing requirements, including chamber size, features, and test parameters.
- Installation and Commissioning
- Professional installation and setup services to ensure the chamber is operational and calibrated correctly.
- Operator Training
- Training programs to help your team master the equipments operation and maintenance.
- After-Sales Support
- Technical assistance, maintenance, and spare parts availability for long-term reliability.
- Upgrade and Expansion
- Options to upgrade your chamber with additional features or expand its capabilities as your needs evolve.
Purchasing Process
To make the purchasing process seamless, we follow these steps:
- Initial Consultation
- Discuss your testing requirements, including the type of materials, environmental conditions, and budget.
- Product Selection
- Choose the right Xenon Test Chamber based on your needs, including size, features, and compliance standards.
- Quotation and Order Placement
- Receive a detailed quotation and confirm the order with us.
- Production and Delivery
- We manufacture the chamber according to your specifications and deliver it to your location.
- Installation and Testing
- Our team installs the chamber and conducts a test run to ensure it operates correctly.
Comprehensive Solar Simulation
This test chamber employs a full-spectrum xenon arc lamp, providing an authentic replication of sunlight, including UV, visible, and IR wavelengths. By simulating natural weathering conditions, it facilitates accurate determination of packaging material resistance, ensuring superior evaluation of durability and longevity.
Advanced Control and Monitoring
A user-friendly LCD touchscreen controller enables precise programming and real-time monitoring of test parameters, including irradiance, temperature, humidity, and spray cycles. Programmable features and rapid response times guarantee flexible, efficient operation for various testing protocols.
Flexible and Efficient Testing Process
Accommodating up to 30 specimen samples and customizable trays, the chamber offers adjustable test parameters to meet a wide range of research needs. With programmable water spray and specimen holder speed, it is suited for rigorous, customizable accelerated weathering studies for packaging materials.
FAQ's of Xenon Test Chamber Suppliers in China for Packaging Material UV Resistance:
Q: How does the Xenon Test Chamber simulate sunlight for UV resistance testing?
A: The chamber utilizes a 1.8 kW full-spectrum xenon arc lamp, which accurately reproduces sunlight including UV, visible, and infrared light. This enables reliable accelerated weathering tests that reflect real-world conditions.Q: What packaging materials can be tested, and how many specimens can the chamber hold?
A: This chamber is designed for testing the UV resistance of various packaging materials, including plastics, films, and foils. It can accommodate up to 30 specimens, each with a maximum size of 15070 mm.Q: When should I use air cooling versus water cooling in the test chamber?
A: Air cooling is suitable for standard UV resistance tests, while water cooling is recommended for high-intensity or longer-duration testing, especially when maintaining consistent internal temperatures is crucial.Q: Where can this test chamber be installed, and how large is the equipment?
A: It is a floor-standing device with dimensions of 950 mm (width) 950 mm (depth) 1700 mm (height), making it suitable for laboratories, research centers, and manufacturing quality assurance departments.Q: What is the process for controlling and adjusting test parameters during an experiment?
A: Parameters such as irradiance (340 or 420 nm), humidity (30-98% RH), and temperature (room temperature to 80C) can be precisely programmed using the LCD touchscreen. Water spray, test speed, and cycles are also customizable, ensuring accuracy and repeatability.Q: How does this chamber ensure safety during testing?
A: The equipment features overtemperature protection, water shortage alarms, and overload protection. These built-in safety mechanisms help prevent operational hazards and equipment damage.Q: What are the benefits of using this chamber for packaging material UV resistance testing?
A: The chamber offers rapid, automated, and highly accurate UV resistance testing, ensuring compliance with international testing standards (GB/T 16422.2, ISO 4892-2, ASTM G155). This ultimately helps manufacturers guarantee packaging durability and product protection.Tell us about your requirement
