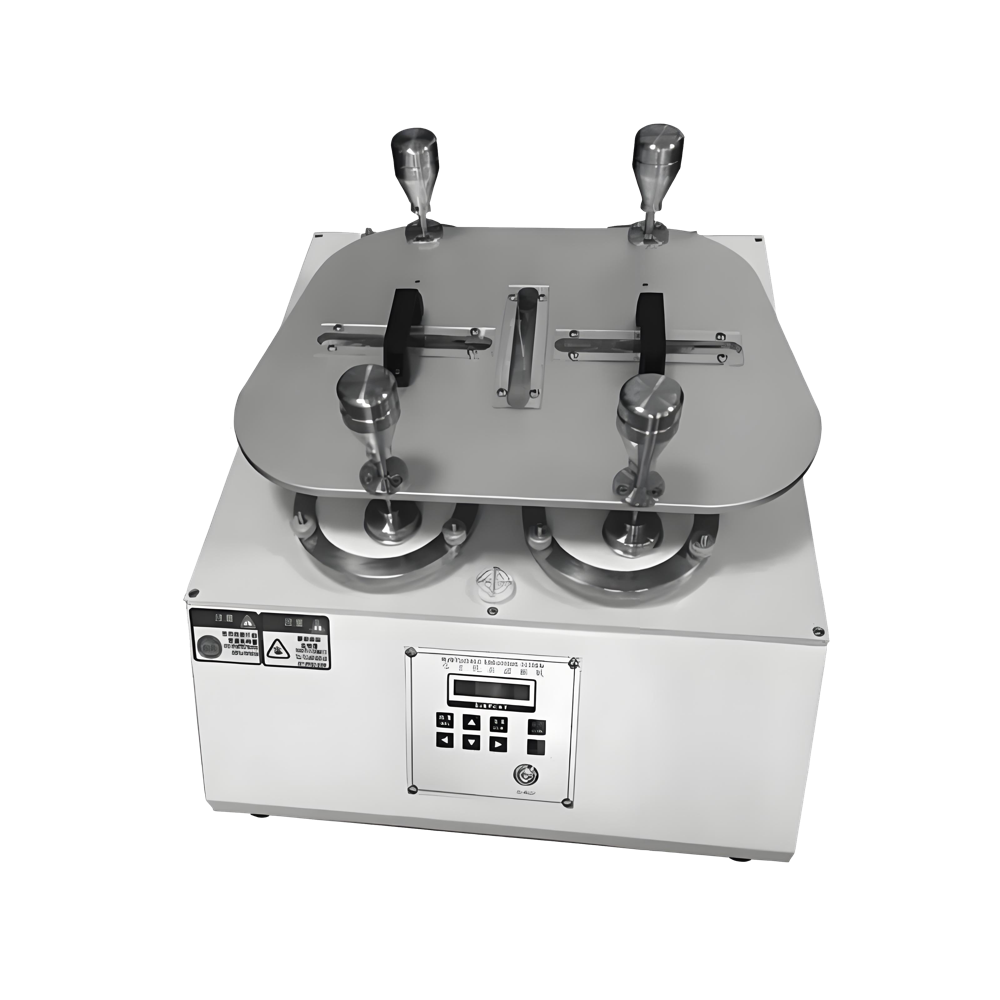

iso 12945 2 martindale abrasion and pilling tester

iso 12945 2 martindale abrasion and pilling tester

138005.0 INR/Unit

Get a Price/Quote

Product Details:

Frequency 50Hz
Display Type Digital LCD
Response Time Immediate reset/start
Number of Specimens 6, 8 or 9 specimens (depending on model)
Power Supply AC 220V 50Hz
Test Range Up to 999,999 cycles
Automation Grade Semi-automatic
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

iso 12945 2 martindale abrasion and pilling tester Price And Quantity

Minimum Order Quantity 1 Unit
Price 138005.0 INR/Unit

Noise Level <70 dB(A)
Preset Counters Available for all test heads
Included Accessories 9 specimen holders, 9 standard weights, abrasive fabric, 1 set backup wear pads
Sample Holders Supplied with 9 holders and 9 weights as standard
Dimension (L x W x H) 885 x 600 x 420 mm
Test Methods Follows ISO 12945-2 and ISO 12947 standards
Machine Material Stainless steel body and anodized aluminum plate
Installation Requirements Power supply AC 220V/50Hz, Stable workbench

iso 12945 2 martindale abrasion and pilling tester Product Specifications

Temperature Standard lab condition 202C
Equipment Type Martindale Abrasion and Pilling Tester
Specimen Size 38 mm diameter
Application Determination of abrasion and pilling resistance of textiles
Test Speed 47.5 rpm
Machine Weight Approx. 90 kg
Max Height 420 mm
Operating Voltage 220V 50Hz
Resolution 1 cycle
Accuracy 1 cycle
Humidity Standard lab condition 654% RH
Interface Type Touch panel controls
Hardness Rubber pads conforming to ISO 12945-2
Usage Textile testing laboratory use
Mounting Type Laboratory table top
Automation Grade Semi-automatic
Measuring Range 0999,999 cycles
Features Programmable cycle counter, emergency stop, individual specimen counters
Control Mode Microprocessor controlled
Port Size Multiple test positions (6, 8, or 9)}
Test Width 38 mm stroke
Response Time Immediate reset/start
Test Stroke 60.5 mm / 24 mm
Capacity Multi-station
Number of Specimens 6, 8 or 9 specimens (depending on model)
Display Type Digital LCD
Frequency 50Hz
Test Range Up to 999,999 cycles
Power Supply AC 220V 50Hz

Noise Level <70 dB(A)
Preset Counters Available for all test heads
Included Accessories 9 specimen holders, 9 standard weights, abrasive fabric, 1 set backup wear pads
Sample Holders Supplied with 9 holders and 9 weights as standard
Dimension (L x W x H) 885 x 600 x 420 mm
Test Methods Follows ISO 12945-2 and ISO 12947 standards
Machine Material Stainless steel body and anodized aluminum plate
Installation Requirements Power supply AC 220V/50Hz, Stable workbench

Product Description

Experience the Fresh innovation of the ISO 12945-2 Martindale Abrasion and Pilling Tester-a distinguished masterpiece crafted for textile evaluation. Built from premium stainless steel and anodized aluminum, this breathtaking machine ensures unmatched accuracy and durability at an unbeatable price. Its microprocessor-controlled interface, digital LCD display, and programmable counter exemplify special design and user convenience. With multi-station capacity, excellent noise control (<70 dB), and outstanding compliance with ISO 12945-2 and ISO 12947 standards, it stands as the definitive solution for laboratories demanding precision and reliability in textile testing.

Expert Use for Textile Testing Laboratories

The ISO 12945-2 Martindale Abrasion and Pilling Tester is specially designed for easy operation in commercial textile testing laboratories. Users should mount the equipment securely on a stable surface, prepare specimens with supplied holders and weights, and follow the touch panel controls for precise measurement. Its main application lies in assessing the abrasion and pilling resistance of fabrics, making it ideal for research, quality control, and development environments where material durability is paramount.

Export Valuation and Market Accessibility

Valuation of the ISO 12945-2 Martindale tester includes consideration of FOB Port delivery from China, making international outlays predictable and manageable. The main export markets comprise Asia, Europe, and North America, supported by a streamlined export process. Sample availability allows potential buyers a cost-effective estimate of performance before committing to larger outlays, ensuring transparent and informed purchasing decisions for laboratories and procurement officers worldwide.

FAQ's of iso 12945 2 martindale abrasion and pilling tester:

Q: How does the Martindale Abrasion and Pilling Tester work?

A: The tester simulates fabric wear by subjecting textile samples to controlled abrasion and pilling cycles using preset holders and weights, following ISO 12945-2 and ISO 12947 standards.

Q: What materials can be tested with this equipment?

A: This tester is designed for evaluating the abrasion and pilling resistance of various textiles, including woven and knitted fabrics, to ensure compliance with quality requirements.

Q: Where is the ISO 12945-2 Martindale Tester commonly used?

A: It is widely used in textile testing laboratories, manufacturing quality control departments, and research institutions focused on material performance evaluation.

Q: What are the benefits of using this machine in a laboratory setting?

A: The machine delivers highly accurate, repeatable results, offers programmable controls, quick resetting, and can test multiple specimens simultaneously, optimizing workflow efficiency for busy labs.

Q: When should I request a sample for evaluation?

A: Requesting a sample is recommended before major procurement or when validating the tester's performance for specific fabric types, ensuring it meets your laboratory's requirements.

Q: What is the maximum number of test cycles the machine can perform?

A: The Martindale Tester features a measuring range of up to 999,999 cycles, allowing extensive and long-term testing for comprehensive fabric assessment.
