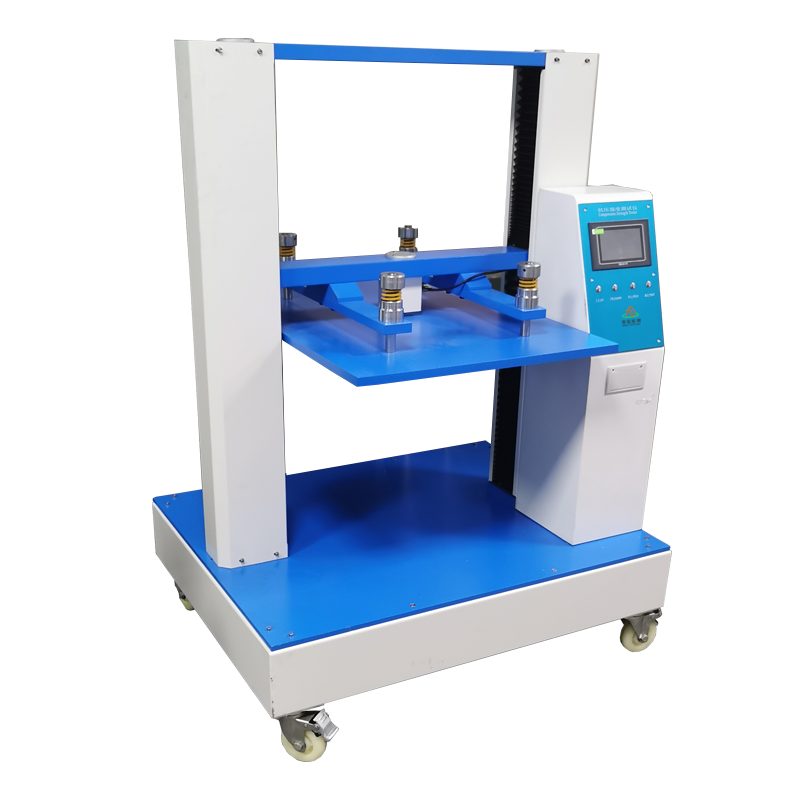

Latest Technology Intelligent Cardboard Box Pressure Testing Instrument
188005.0 INR/Unit
Product Details:
- Application Cardboard Box Compression Strength Testing
- Display Type 7-inch Touch Screen Digital Display
- Max Height 1200 mm
- Mounting Type Floor Standing
- Accuracy 1% FS
- Response Time 1 ms
- Frequency 50 Hz
- Click to view more
X
Latest Technology Intelligent Cardboard Box Pressure Testing Instrument Price And Quantity
- 188005.0 INR/Unit
- 1 Unit
- Automatic and manual calibration
- 1000 x 1000 mm
- Free from vibration, direct sunlight, corrosive gas
- Test result storage up to 1000 records
- Real-time curve drawing, Report generation, Data export
- CE Certified
- Over-travel, Overload, Emergency Stop
- Servo Motor drive with direct transmission
- 60 dB
Latest Technology Intelligent Cardboard Box Pressure Testing Instrument Product Specifications
- Cardboard Box Compression Strength Testing
- PLC & Touch Screen Control
- 1200 mm
- 7-inch Touch Screen Digital Display
- Industrial Laboratory Packaging Test
- Floor Standing
- 1000 mm
- 10 3 mm/min
- 1% FS
- 1 ms
- 0-1200 mm adjustable
- Approx. 450 kg
- 0.01 kN
- 0-50 kN
- 50 Hz
- AC 220V, 50Hz
- Automatic data analysis, Overload protection, Emergency stop, Data storage
- No external gas required (electromechanical drive)
- 0-50 kN
- Standard port with safety lock
- 1000 x 1000 x 1200 mm
- 20% - 90% RH
- 10C - 40C
- Fully Automatic
- 220V, 50Hz
- Specialized hardened steel platen
- Single box per test
- Intelligent Box Compression Testing Machine
- USB, RS232
- 50 kN
- Automatic and manual calibration
- 1000 x 1000 mm
- Free from vibration, direct sunlight, corrosive gas
- Test result storage up to 1000 records
- Real-time curve drawing, Report generation, Data export
- CE Certified
- Over-travel, Overload, Emergency Stop
- Servo Motor drive with direct transmission
- 60 dB
Latest Technology Intelligent Cardboard Box Pressure Testing Instrument Trade Information
- Cash in Advance (CID)
- 100 Unit Per Month
- 7 Days
- All India
Product Description
Intelligent Carton Pressure Test Instrument
1. Equipment Overview
Intelligent Carton Pressure Testing Instrument is a highly intelligent equipment, which is specially used to evaluate the pressure capacity, compressive strength and overall structural stability of various cartons (such as corrugated cartons, honeycomb cardboard boxes, etc.). Combining advanced microcomputer control technology and high-precision sensors, the instrument is able to accurately simulate the pressure that cartons are subjected to during actual transportation, storage and stacking processes, and provide detailed test data and reports. The instrument is widely used in packaging material manufacturing industry, logistics and transportation industry as well as quality control departments to ensure that packaging materials comply with relevant standards and customer requirements.
2. Main Functions
- Compressive strength test: Measure the maximum pressure-bearing capacity of carton in the vertical direction, and evaluate its weight-bearing capacity during stacking, transportation and storage.
- Deformation test: record the deformation of carton under pressure, evaluate its deformation degree and recovery ability.
- Stacking test: simulate the force of carton in actual stacking situation, evaluate its stacking stability and load-bearing capacity.
- Cyclic Pressure Test: Load and unload the carton for several cycles to evaluate its fatigue performance and durability.
- Data analysis and report generation: Built-in data analysis software can automatically generate detailed test reports, including maximum compressive strength, deformation, loading curve and other parameters.
3. Working Principle
1.
Specimen preparation: Place the carton to be tested between the platens of the testing instrument to ensure that the position and direction of the carton is in accordance with the test requirements.
2.
Parameter setting: Set the test parameters through the intelligent control panel, including loading speed, pressure range, displacement limit, etc. The device supports a variety of preset test modes. The device supports a variety of preset test modes, which is convenient for users to choose quickly.
3.
Loading process: start the testing instrument, the platen exerts pressure on the carton at the set loading speed. The instrument monitors and records the deformation of the carton and the pressure applied in real time.
4.
Data collection and analysis: During the testing process, the equipment automatically collects pressure and deformation data and generates a test report at the end of the test. The test report can be viewed through the built-in display or exported through the USB interface.
4. Equipment features
- High-precision control: Adopting advanced microcomputer control system and high-precision sensors, it can accurately control the parameters such as loading speed, pressure and displacement to ensure the accuracy and reliability of the test results.
- Intelligent operation: Equipped with an intelligent control panel, it supports a variety of preset test modes and is easy to operate. Users can set parameters and test control through the touch screen.
- Safety and Reliability: Equipped with multiple safety protection devices, such as overload protection, limit protection, emergency stop device, etc., to ensure the safety and reliability of the testing process.
- Data processing and analysis: Built-in data processing software can automatically generate test reports and provide data analysis function, which is convenient for users to analyze the results and quality control.
- Sturdy structure: made of high-strength materials with good rigidity and stability, able to withstand large testing pressure.
- Portability: compact design, light weight, easy to move and install, suitable for use in different test environments.
5. Technical parameters
The following are some common technical parameters of intelligent carton pressure testing instruments:
- Maximum test force: 10kN, 20kN, 50kN, etc. (according to different models)
- Testing speed: 1-500mm/min (adjustable)
- Displacement accuracy: 0.5mm
- Pressure accuracy: 1%
- Specimen size: the maximum test carton size up to 1200mm 1200mm 1200mm (according to different models)
- Power supply voltage: 220V/50Hz or 380V/50Hz
- Size: according to different models, generally in the 1000mm 800mm 1500mm or so
- Weight of the whole machine: according to different models, generally between 200-600kg.
6. Application field
Intelligent carton pressure testing instrument is widely used in the following fields:
- Packaging material manufacturing industry: used to assess the pressure-bearing capacity and compressive strength of packaging materials such as corrugated cartons and honeycomb cardboard boxes.
- Logistics and transportation industry: to evaluate the load-bearing capacity and stability of packaging materials during actual transportation and stacking.
- Quality control: Quality control during the production process to ensure that packaging materials comply with relevant standards and customer requirements.
7. FAQ
Q1: What is the testing speed of Intelligent Carton Pressure Tester?
A1: The testing speed is usually between 1-500mm/min, which can be adjusted according to different testing requirements.
Q2: How to ensure the accuracy of the test results?
A2: The equipment adopts advanced microcomputer control system and high-precision sensors, which can accurately control the parameters of loading speed, pressure and displacement, and ensure the safety and reliability of the testing process through multiple safety protection devices to ensure the accuracy of the test results.
Q3: Is the equipment easy to operate?
A3: Yes, the device is equipped with an intelligent control panel that supports a variety of preset test modes and is easy to operate. Users can set parameters and test control through the touch screen.
Q4: What is included in the test report?
A4: The test report usually contains parameters such as maximum compressive strength, deformation, loading curve, etc. It also provides data analysis function, which is convenient for users to analyze the results and quality control.
Q5: Does the device support customized test parameters?
A5: Yes, the equipment supports the setting of different parameters such as loading speed, pressure range and displacement limit according to different materials and testing requirements to meet various testing requirements.
| Item | DR-B211-900 | DR-B211-1200 | DR-B211-1500 |
| Max. Force | 10KN(1000 kg ,2205lb) | 20KN(2000 kg, 4409lb) | 50KN(5000kg,11023lb) |
| Load cell | 1 load cell for highest accuracy | ||
| Control system | Dual control (Computer control with Windows mode+Touch screen control ) | ||
| Servo Motor | 400W | 750W | |
| Servo Driver | 400W | 750W | |
| Screws | Ball screws(Double ball guide rod design, high transmission accuracy, high transmission power efficiency) | ||
| Force reading | Gf, kgf, Ibf, N, KN, T etc | ||
| Load cell Resolution | 1/250,000 | ||
| Load Precision | within 0.5% | ||
| Effective test area (L x W x H) | 700x900x900mm | 1000x1200x1000mm | 1300x1500x1500mm |
| Compression Stroke | 0~900mm | 0~1000mm | 0~1500mm |
| Lift speed | 0.1~200mm/min | ||
| Software | Mtest HD-002-A(Independent R&D) | ||
| Data display | Load, displacement, speed, loading rate and elapsed time | ||
| Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat | ||
| Report items | Serial number, peak value, average value, set pressure holding value, pressure holding time | ||
| Electrical Supply | 1phase, AC 220V, 500W, 50HZ | 1phase, AC 220V,550W,50HZ | 1phase, AC 220V,900W,50HZ |
| Overall Dimensions (L x W x H) | Approx.1510x1200x1645mm | Approx.1510x1200x1645mm | Approx.1865mmx1500mmx2235mm |
| Weight | Approx.350kg(772lb) | Approx.670kg(1477lb) | Approx. 1000kg(2205lb) |
| Operation Temperature and relative humidity | 10~40, 30~80% | ||
Efficient & Accurate Compression Testing
Utilizing advanced servo motor technology and a direct drive system, this machine provides highly accurate compression testing for cardboard boxes. Its sturdy platen accommodates large samples, and precise digital controls ensure repeatable results critical for packaging verification.
User-Friendly Digital Interface
With a 7-inch touch screen and intuitive PLC control, users can quickly set up tests, monitor live curve graphs, and generate comprehensive reports. The real-time data is easy to export and analyze, streamlining your laboratory workflow.
Robust Safety and Quality Standards
Certified with CE and equipped with multiple safety functions-including overload protection, emergency stop, and secure locking-this instrument promotes safe operation in industrial and laboratory environments. Its durable design and hardened steel components add to its reliability.
FAQ's of Latest Technology Intelligent Cardboard Box Pressure Testing Instrument:
Q: How does the Intelligent Cardboard Box Pressure Testing Instrument operate?
A: The instrument operates through an integrated servo motor direct drive, controlled via a PLC and a 7-inch touch screen. Users set the compression parameters, and the machine automatically applies force, records real-time compression curves, and stores up to 1000 test results for later export and analysis.Q: What benefits does this testing machine offer over standard models?
A: This machine offers enhanced precision (1% FS), high storage capacity for test data, automatic and manual calibration options, real-time graphical monitoring, and comprehensive safety features. Its robust build and user-friendly digital interface significantly improve efficiency and reliability in packaging strength testing.Q: Where is the optimal environment for operating this equipment?
A: The testing machine should be used in environments free from vibration, direct sunlight, and corrosive gases. Ideal conditions include humidity levels between 20% and 90% RH and ambient temperatures from 10C to 40C to ensure accurate and consistent test results.Q: When should calibration be performed on the device?
A: Calibration should be performed before initial use, after any major mechanical service, or if test results seem inconsistent. The machine supports both automatic procedures for routine checks and manual calibration for fine adjustments.Q: What is the typical process for testing a cardboard box's compression strength?
A: Place a single box specimen (1000 x 1000 x 1200 mm) on the machine's platen. Configure test parameters on the touch screen, start the test, and the machine will apply controlled compression, record measurements, and display results for analysis and report generation.Q: How do data export and reporting features improve workflow?
A: The instrument's software allows for real-time recording, analysis, and exporting of test results via USB or RS232. Automated report generation and data storage eliminate manual transcription, ensuring accuracy, traceability, and efficient integration with laboratory data management systems.Tell us about your requirement
